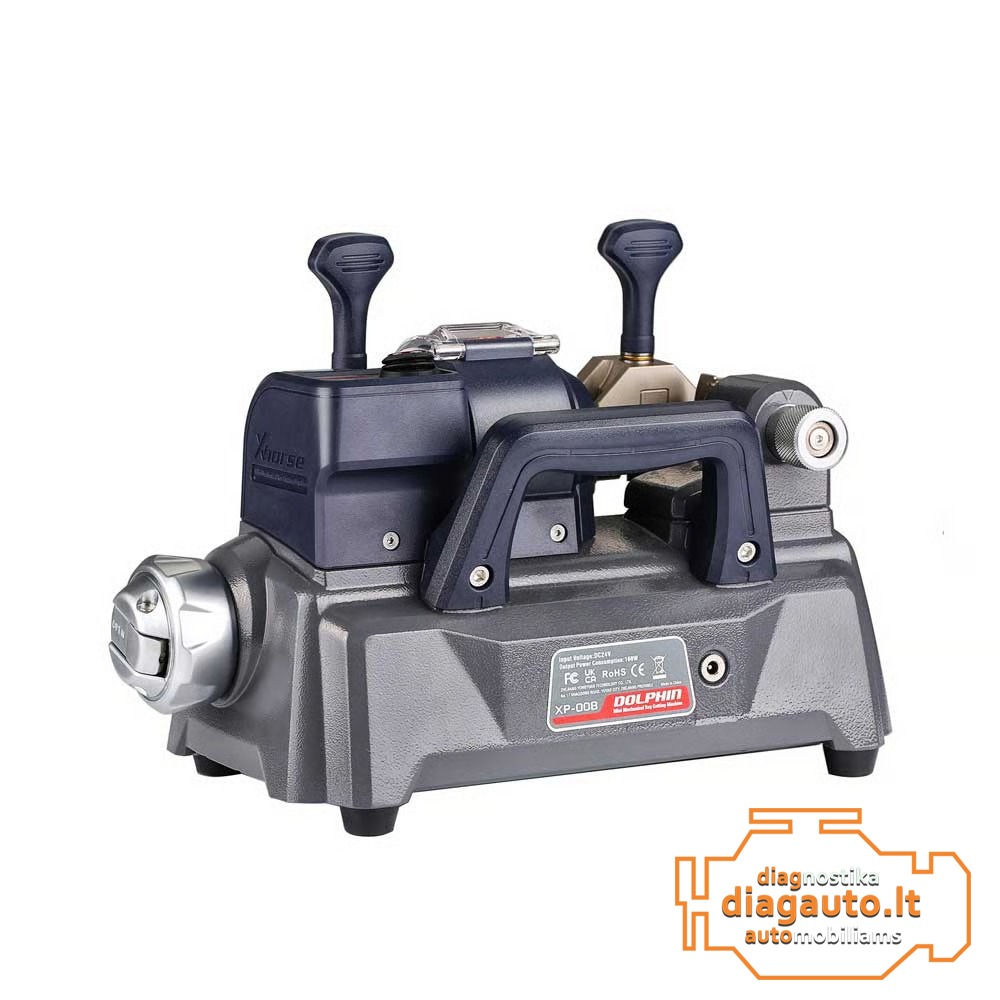

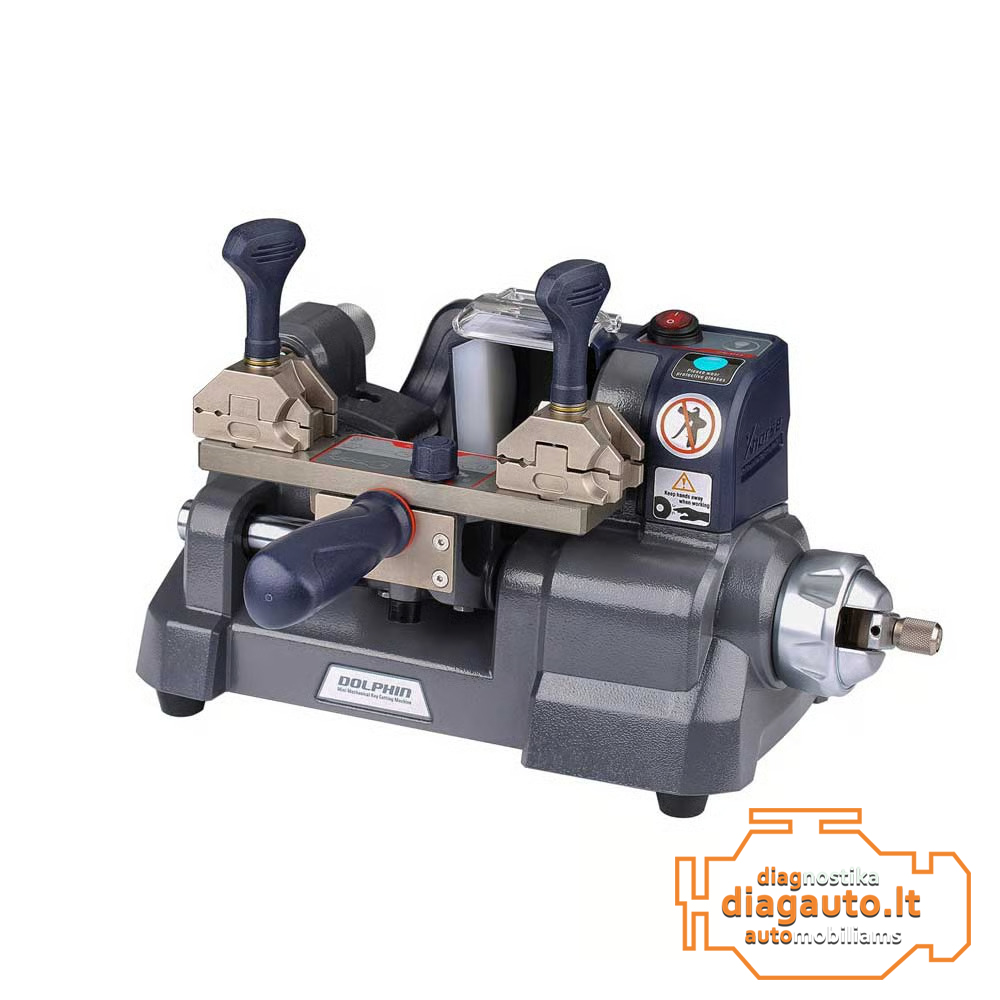

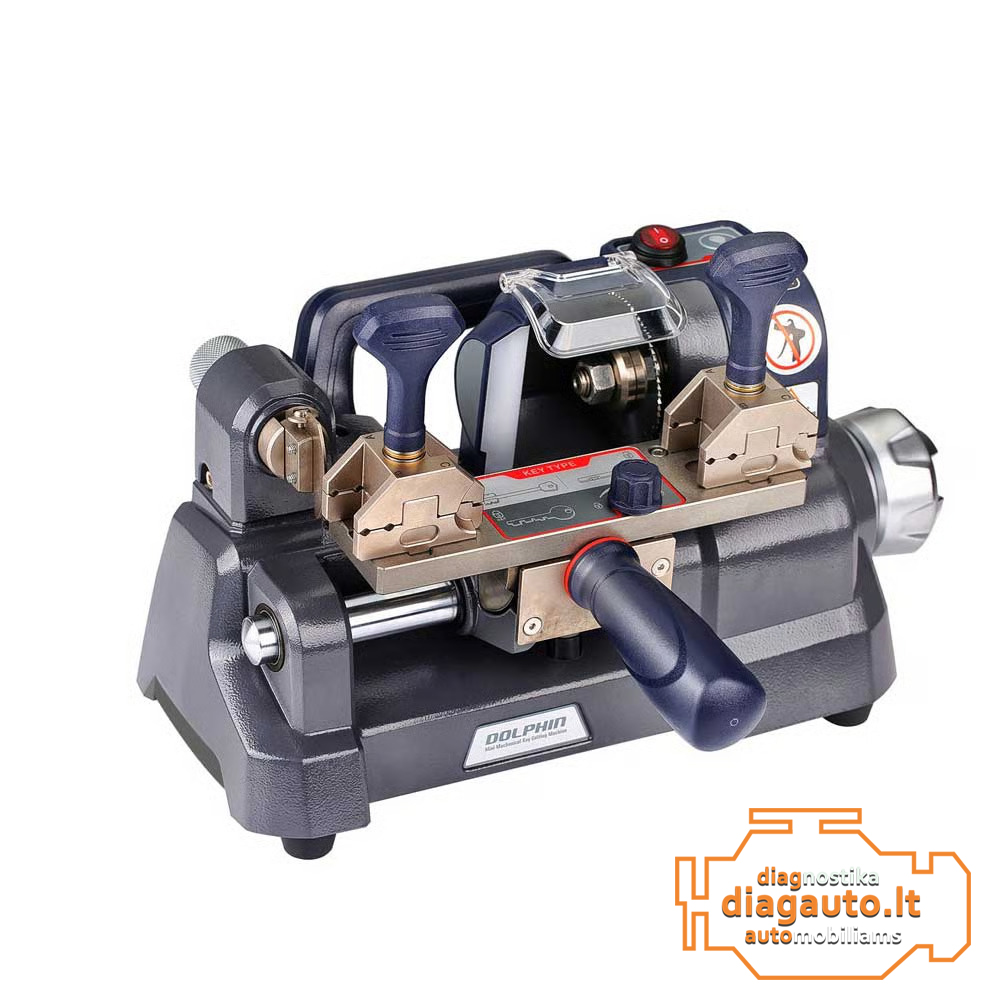

Xhorse Dolphin XP-008 – Professional Key Cutting Machine

750.00

The Xhorse Dolphin XP-008 is a professional manual key cutting machine designed for duplicating and cutting special key types. It is particularly suitable for double-bit, pump, safe-deposit box and other specially designed keys.

The XP-008 features a durable aluminium construction, precision micro-adjustment, flexible key clamping and an adjustable clamp rotation angle. Its clamping space of up to 115 mm allows convenient processing of keys with different shaft lengths.

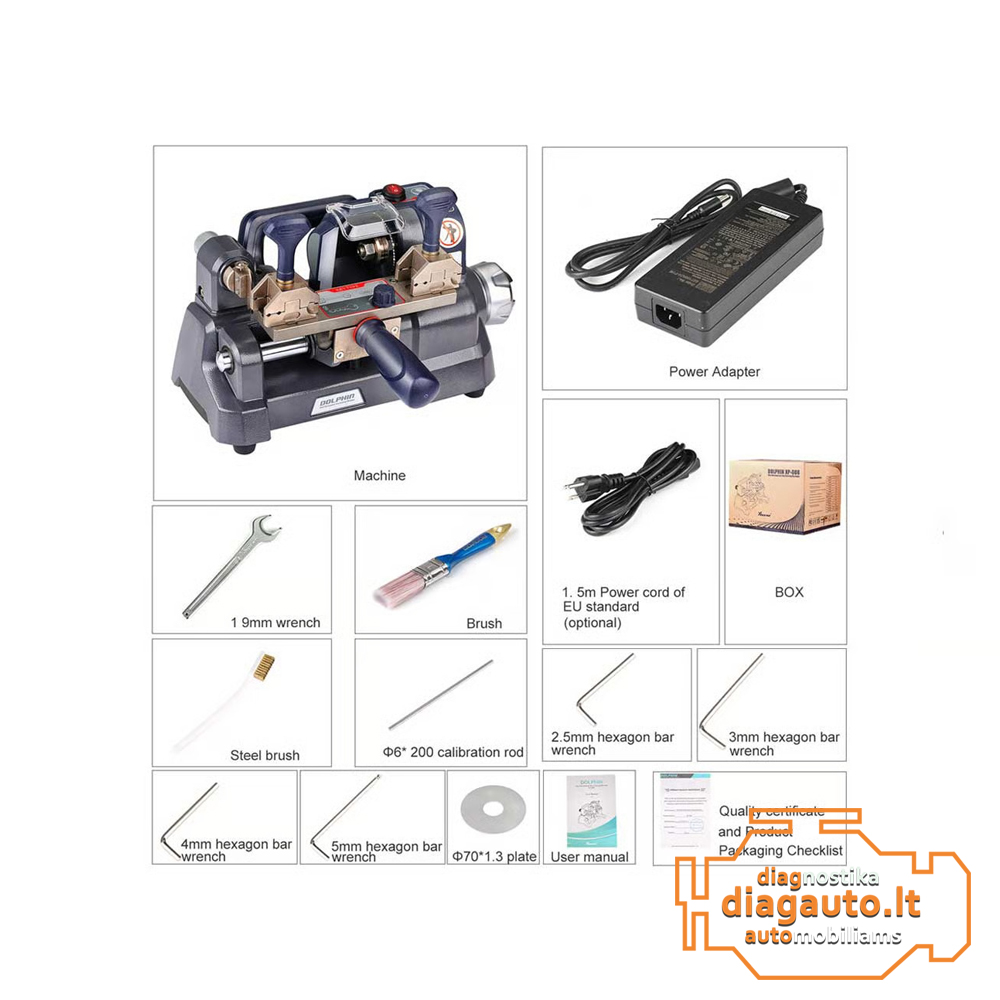

Package Contents:

1 x Xhorse Dolphin XP-008 Key Cutting Machine
1 x Power Supply Adapter
1 x Power Cable
1 x Calibration Plate
1 x Cleaning Brush.

Warehouse: In stock
LT/LV/EE Delivery time: 3-4 working days
Europe Delivery time: 4-7 working days
International Delivery time: 7-10 working days
Express Delivery time: 3-4 working days

Description

Main Features

  • Cutting and duplication of special keys
  • Suitable for double-bit keys
  • Suitable for pump keys
  • Suitable for safe-deposit box and other special keys
  • Up to 115 mm clamping space
  • Precision multi-directional micro-adjustment
  • Adjustable clamp rotation from 0° to 45°
  • Integrated LED lighting
  • Ergonomic design
  • Durable aluminium construction
  • 1050 RPM spindle speed for efficient cutting
  • Concealed handwheel mechanism for convenient lateral cutting feed

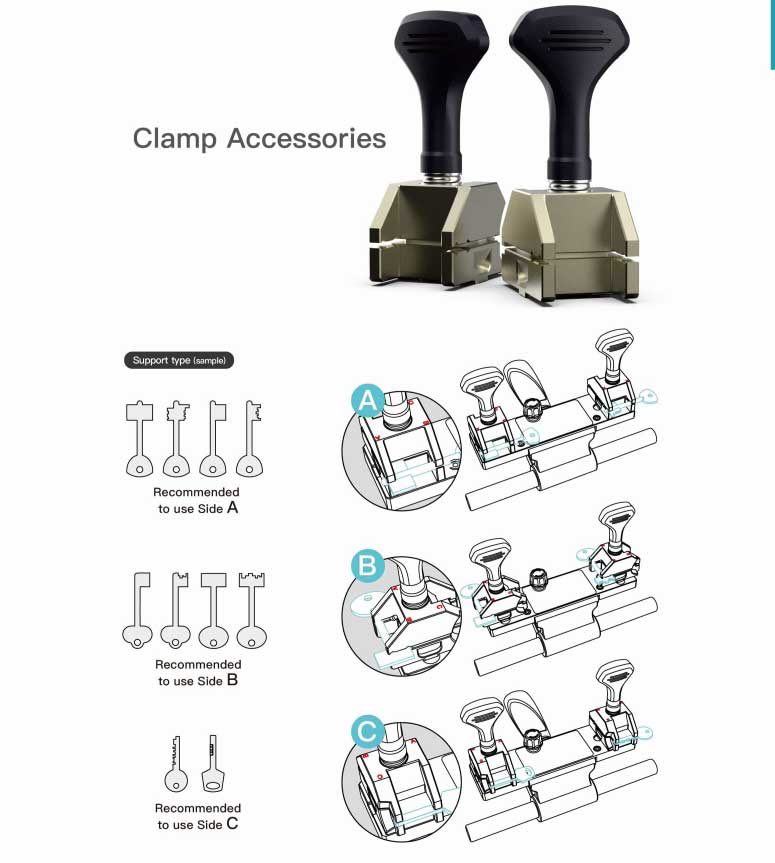

  • Universal key clamping system.



Technical Specifications

  • Model: Dolphin XP-008
  • Spindle Speed: 1050 RPM
  • Table Travel: 46 mm
  • Clamp Rotation Angle: 0–45°
  • Clamping Space: up to 115 mm
  • Power: 145 W
  • Input Voltage: 12 V DC
  • Motor Torque: 1.32 Nm
  • Input Frequency: 47–63 Hz
  • Dimensions: 305 × 185 × 200 mm
  • Net Weight: 10.8 kg
  • Gross Weight: approx. 12.5 kg
  • Package Dimensions: 435 × 370 × 315 mm.
