Description
Key Features
- Compatible with ODIS diagnostic software
- Compatible with VCDS software drivers
- Full-system diagnostics for supported vehicle control units
- Read and clear diagnostic trouble codes
- Live data monitoring
- Adaptations and basic settings
- Coding and programming where supported by the software and vehicle configuration
- DoIP protocol support
- CAN FD protocol support
- K-Line protocol support

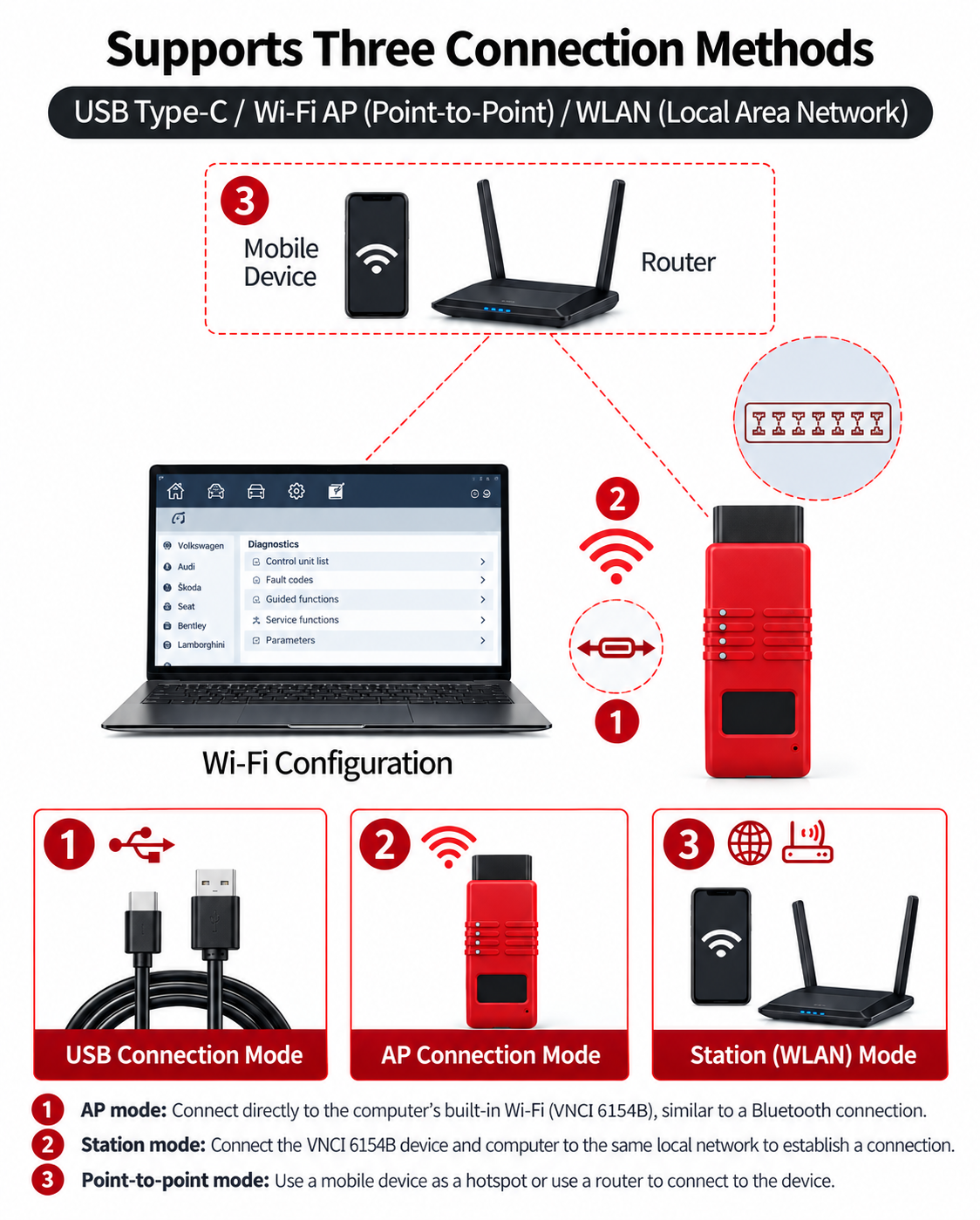

- Three connection methods: USB-C, direct Wi-Fi (P2P) and local Wi-Fi / LAN
- 2.4 GHz and 5 GHz Wi-Fi support
Vehicle Compatibility
Designed for VAG group vehicles:
- Volkswagen
- Audi
- Škoda
- SEAT
The manufacturer advertises broad vehicle coverage from 1996 onwards. Actual functionality depends on the vehicle model, production year, control unit and software version.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | VNCI |
| Model | 6154B |
| Type | VAG diagnostic interface |
| Software Compatibility | ODIS and VCDS drivers |
| Connectivity | USB-C, Wi-Fi, LAN |
| Wi-Fi Frequencies | 2.4 GHz and 5 GHz |
| Supported Protocols | DoIP, CAN FD, K-Line |
| Power Supply | 12 V from vehicle |
| Recommended Operating System | Windows 10 Professional 64-bit |
| RAM | Minimum 4 GB |
| Free Space on C Drive | Minimum 100 GB |
