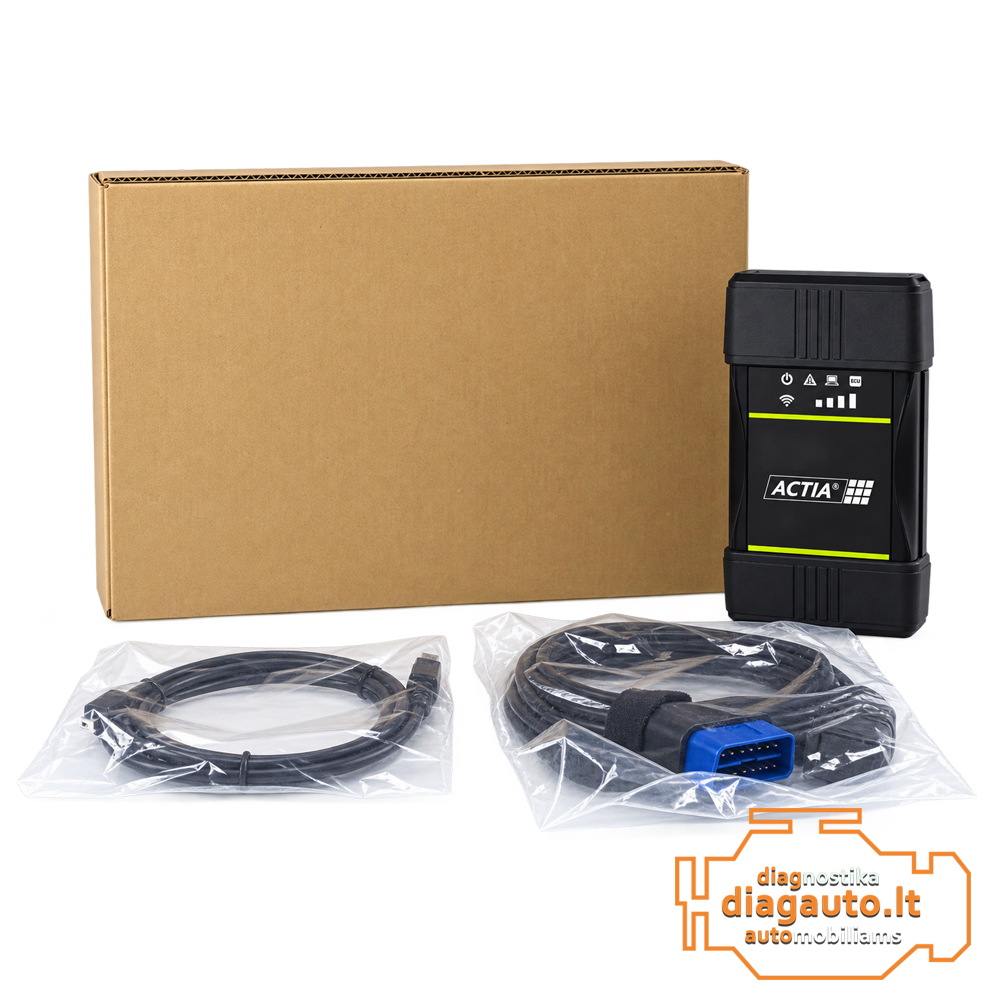

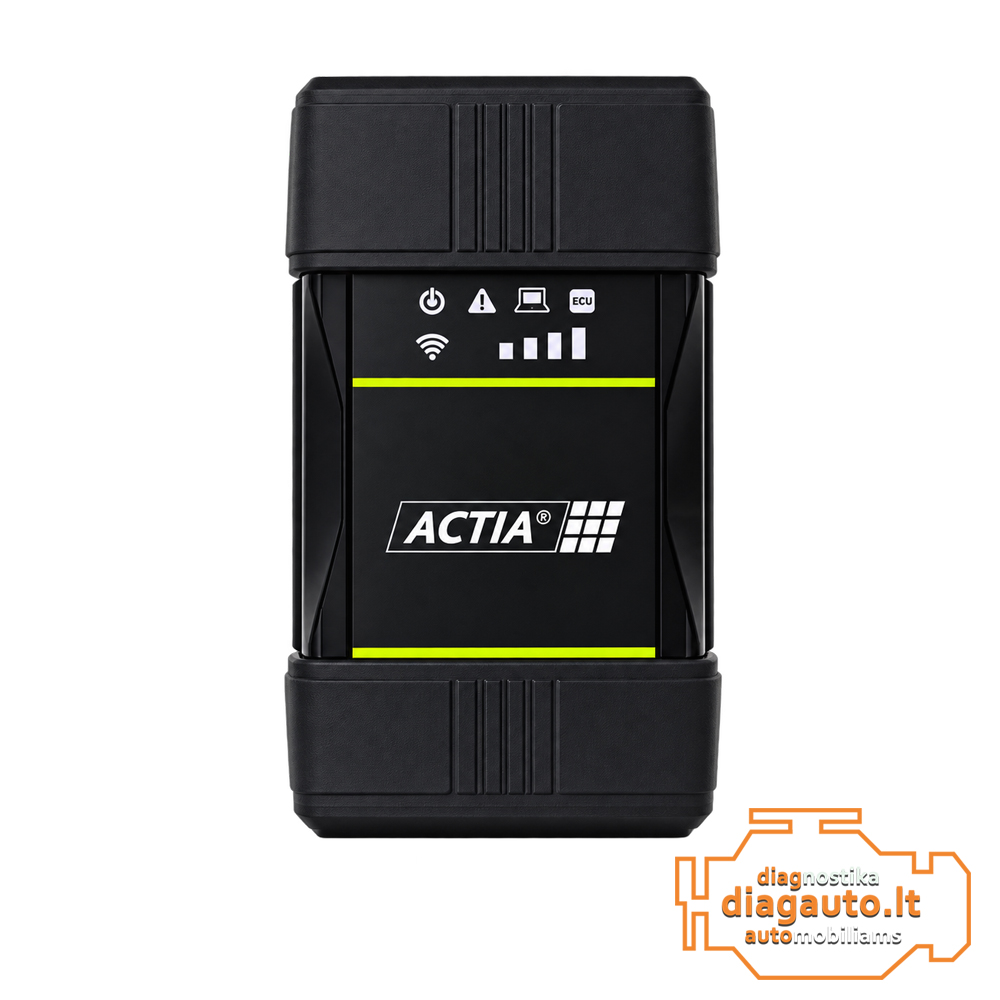

Description

Key Features

• Professional OEM diagnostic interface
• Official successor to PassThru+ XS 2G
• J2534-1 / J2534-2 support
• D-PDU API / ISO 22900-2 support
• RP1210C support
• CAN and CAN FD
• DoIP / ISO 13400
• K-Line / ISO 9141
• SAE J1708
• SAE J1939
• 12 V and 24 V system support
• USB 2.0
• Wi-Fi 2.4 / 5 GHz
• Bluetooth 4.2
• 100 Mbps Ethernet
• Galvanic isolation
• Integrated multiplexer
• Built-in web interface
• Passenger car and commercial vehicle support
• Professional OEM diagnostics and programming.

OEM Diagnostic & Programming

ACTIA CORE XS ACI3 can be used with various OEM diagnostic platforms when the appropriate manufacturer software and license are available.

Supported solutions include:

• CNH EST
• DiagBox
• GDS2
• Porsche VT4G
• BMW ISTA
• Mercedes-Benz Xentry
• FCA
• Generic J2534 diagnostic tools.

Additional supported systems listed by the supplier include:

• Lincoln IDS / FDRS
• MINI ISTA D / ISTA P
• Toyota GTS+ / ISTA
• Opel / Vauxhall SPS / GDS2
• Tesla Toolbox 3
• Porsche PIWIS 4
• SAIC MG VDS3 / SIPS – limited support.

Important: ACTIA CORE XS is a VCI / PassThru interface. OEM diagnostic software and individual manufacturer licenses are not included unless explicitly stated in the product offer. OEM software packages require separate licenses.

Supported Communication Protocols

The ACTIA CORE XS ACI3 is designed to communicate with a wide range of modern and legacy vehicle electronic systems.

J2534

SAE J2534-1 / J2534-2 allows the VCI to work with compatible OEM software for diagnostics and ECU programming.

D-PDU API

D-PDU API according to ISO 22900-2 provides a professional communication interface for OEM diagnostic and programming applications.

RP1210C

RP1210C support enables compatibility with professional diagnostic platforms, including applications used in commercial vehicle environments.

DoIP

Diagnostics over Internet Protocol (ISO 13400) provides communication support for newer Ethernet-based vehicle architectures.

CAN FD

CAN FD support enables communication with newer vehicle electronic control units.

Additional protocols:

• CAN
• ISO 15765
• K-Line / ISO 9141
• SAE J1708
• SAE J1939.

Passenger & Commercial Vehicles

The ACTIA CORE XS ACI3 is designed not only for passenger cars but also for commercial vehicles.

Its 12 V and 24 V system support allows it to be used across a broader range of vehicle categories, depending on the OEM software and license being used.

Supported Manufacturers & Systems

BMW / MINI

• BMW ISTA
• MINI ISTA D
• MINI ISTA P

Mercedes-Benz

• Xentry

Porsche

• Porsche PIWIS 4
• Porsche VT4G

Opel / Vauxhall

• SPS
• GDS2
• Legacy systems

Toyota

• Toyota GTS+
• ISTA

Ford / Lincoln

• Lincoln IDS
• FDRS

Tesla

• Tesla Toolbox 3

SAIC / MG

• VDS3
• SIPS – limited support

Other

• FCA
• CNH
• DiagBox
• Other platforms supporting the relevant VCI standards.

Note: Exact vehicle models, model years and available functions depend on the OEM software and active manufacturer license. A universal model-year range should therefore not be specified for all brands.

Galvanic Isolation & Integrated Multiplexer

The ACTIA CORE XS ACI3 is designed for professional automotive use and features galvanic isolation together with an integrated multiplexer.

These features help provide reliable communication between the computer, VCI and vehicle electronic systems.

The robust automotive-grade design makes the interface suitable for professional workshop environments.

Connectivity

USB 2.0

Provides a stable wired connection between the computer and VCI.

Wi-Fi

Supports:

• 2.4 GHz
• 5 GHz

Bluetooth

Integrated Bluetooth 4.2 wireless connectivity.

Ethernet

Integrated 100 Mbps Ethernet connection.

The combination of wired and wireless interfaces makes the ACTIA CORE XS suitable for different professional workshop environments.

Built-in Web Interface

The ACTIA CORE XS ACI3 includes an integrated web interface for convenient access to device configuration and diagnostic information.

It can be used for:

• Device configuration
• Connection status monitoring
• Diagnostic parameter viewing
• Network configuration

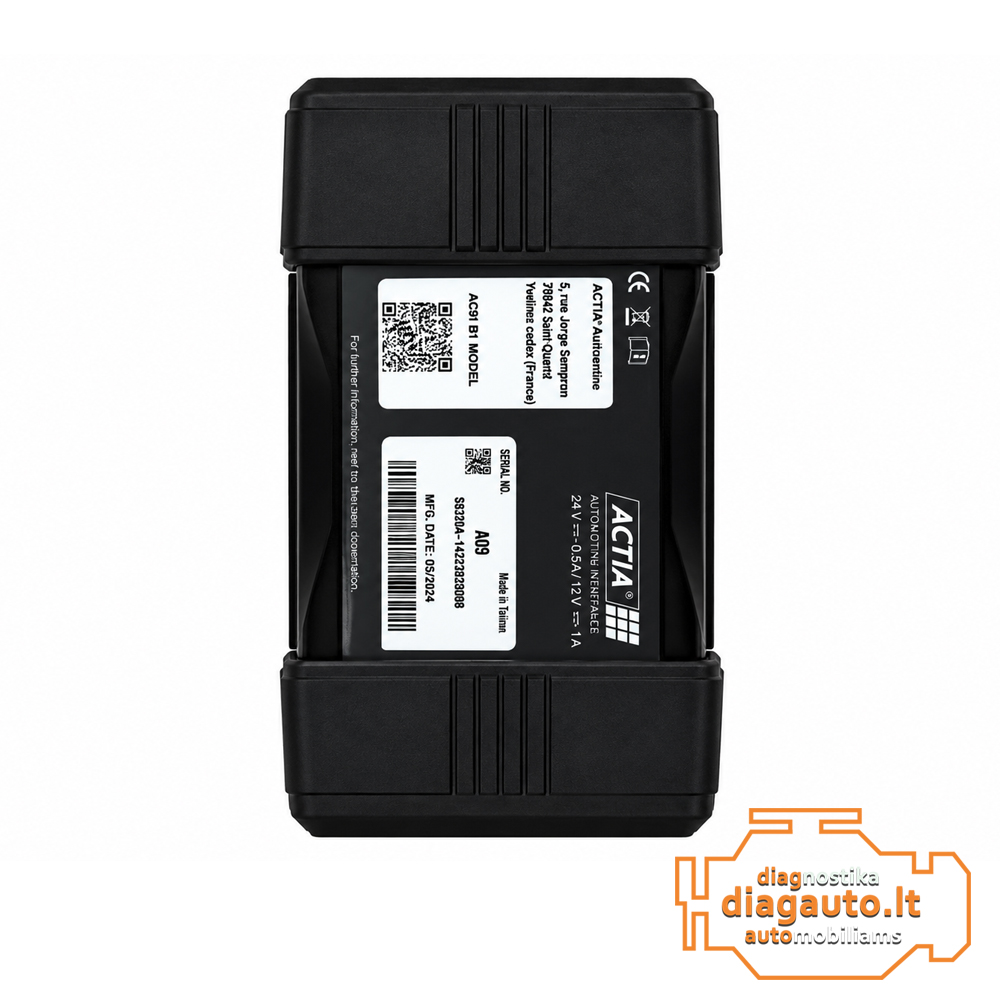

12 V / 24 V Support

The ACTIA CORE XS ACI3 supports:

12 V systems – passenger vehicles

24 V systems – commercial and heavy-duty vehicles

This provides greater flexibility for professional workshops working with different vehicle categories.
